ID Date Author Type Subject Text Attachments
  21   Fri Oct 4 10:18:44 2019 M. Andrewdocumentationinstructions for checking boardstack status and temperatureThis is done from sixrmlaptop02 (a.k.a. balrog017).
 These scripts are not in the $PATH, so you
must cd to ~/build/uh-svn-repo/trunk/software/b2l/scripts_dev
  22   Fri Oct 4 10:33:53 2019 M. Andrewdocumentationinstructions for boardstack configurationThis is done from sixrmlaptop02 (a.k.a. balrog017).
 These scripts are not in the $PATH, so you
must cd to ~/build/uh-svn-repo/trunk/software/b2l/scripts_dev

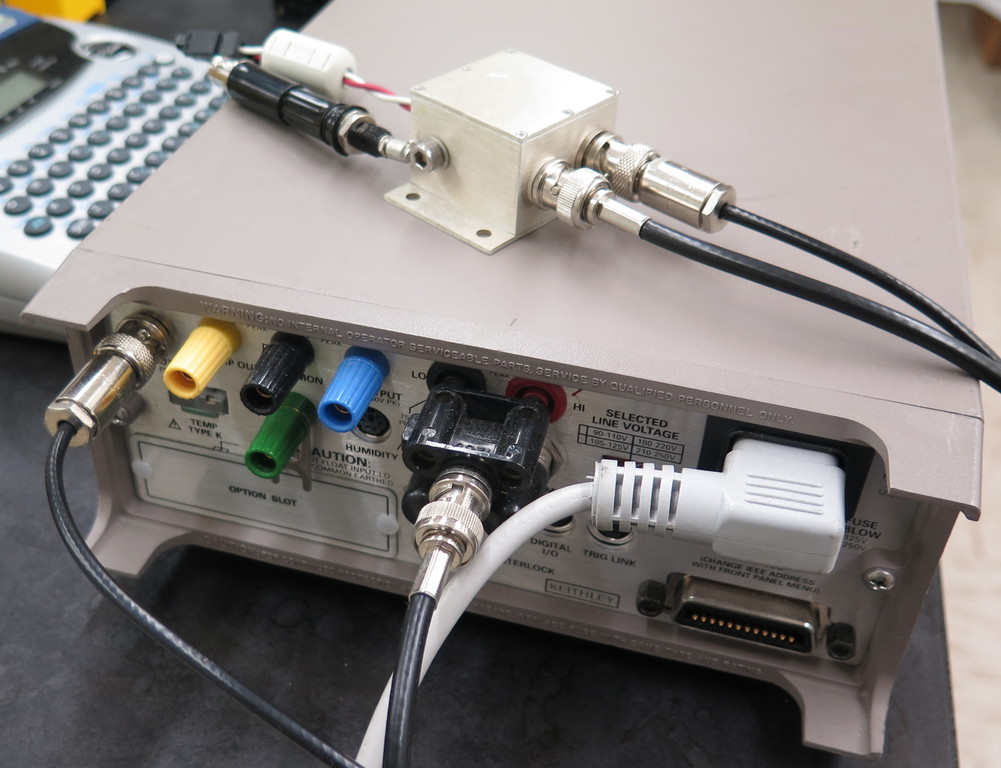

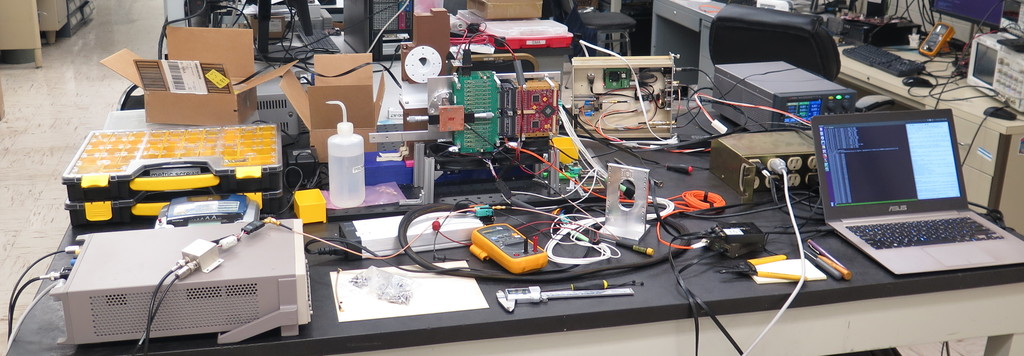

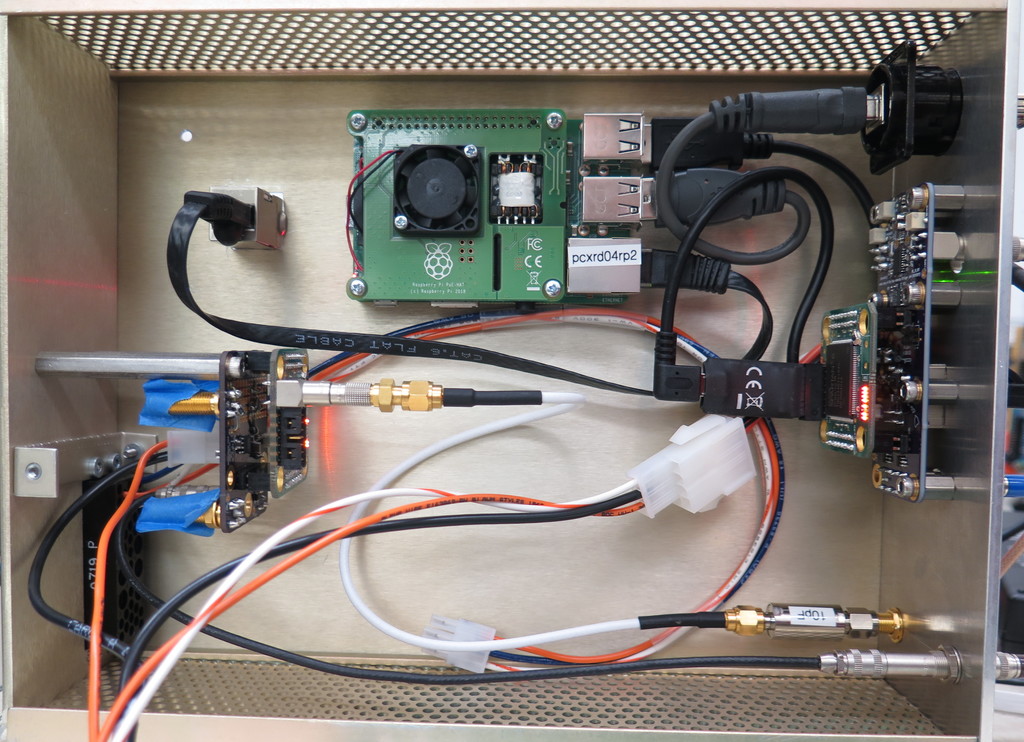

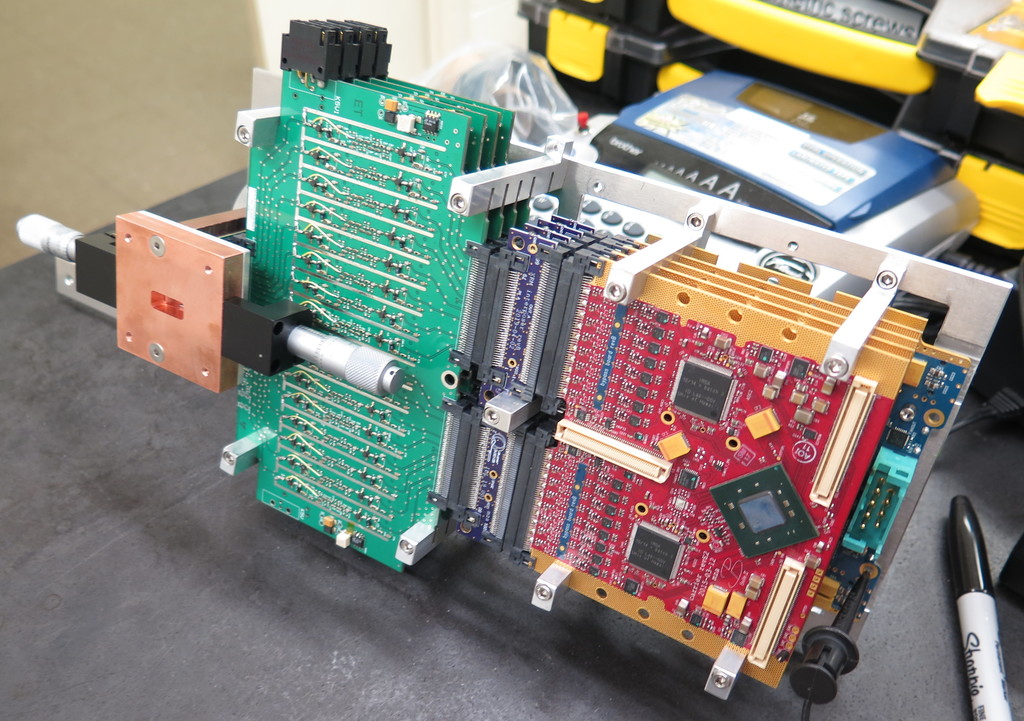

  23   Thu Oct 17 08:06:01 2019 M. Andrewdocumentationwhat was brought to KEK (2019-09)photographic record of equipment delivered
to KEK in September		  nim-bin.joestrummer-rafferty-raspberry-pi.jpegboardstack-preamps-sensor-adjustable-slit.jpegkeithley-connections.jpegentire-setup.jpeg
  Draft   Thu Oct 17 09:28:32 2019 M. Andrewdocumentation what was installed for HER (2019-09)
  25   Tue Oct 29 09:27:14 2019 M. Andrewdocumentationinstructions on taking a full revolution of waveformsThis may be useful when steering the sensor
into x-ray beam for instance.

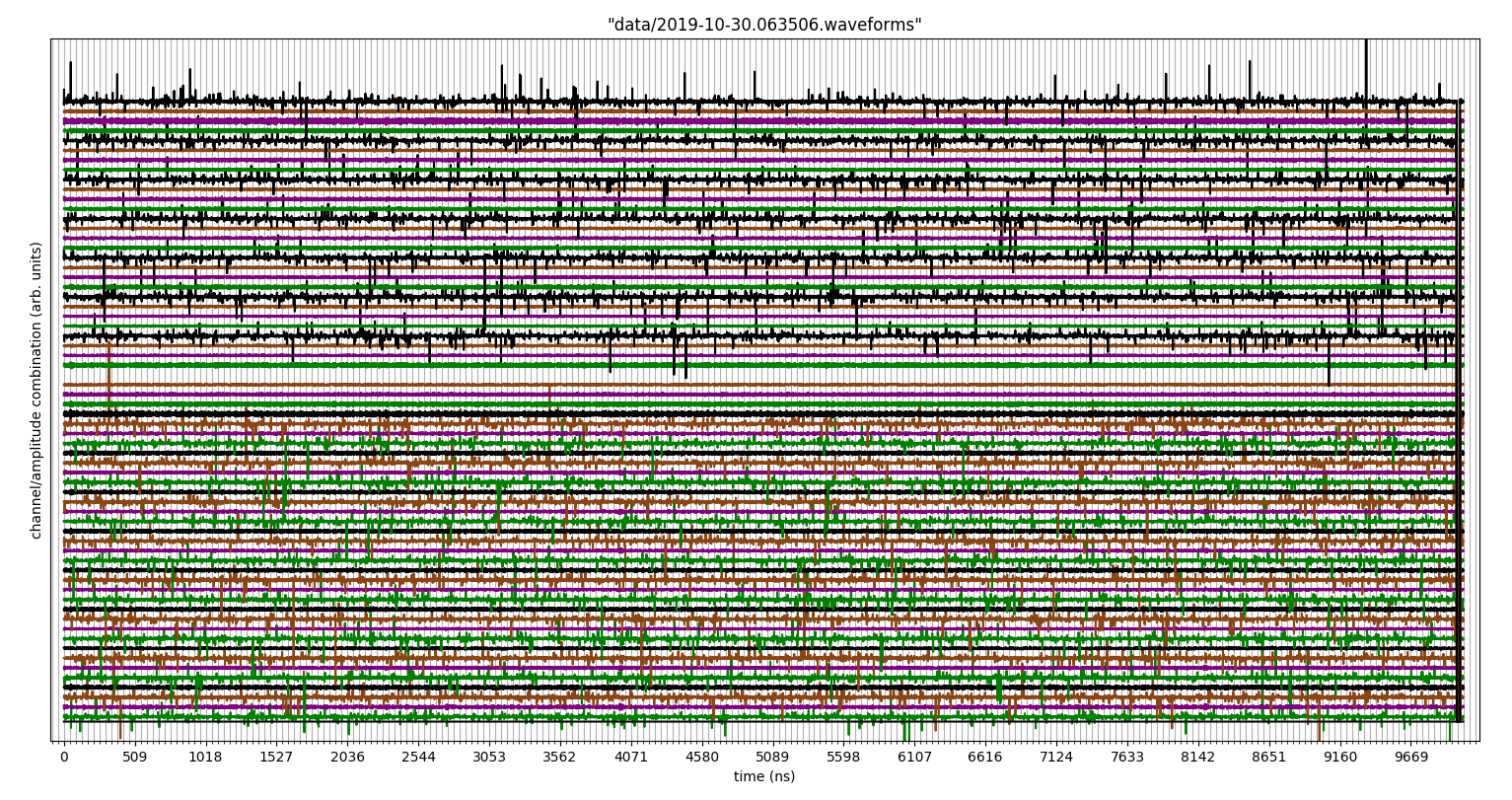

  26   Wed Oct 30 15:23:57 2019 M. Andrewdocumentationsample waveform filesA sample waveform file from the reference
boardstack at UH and the boardstack in the
HER at KEK are attached (in tar bzip2 file). 		 8x

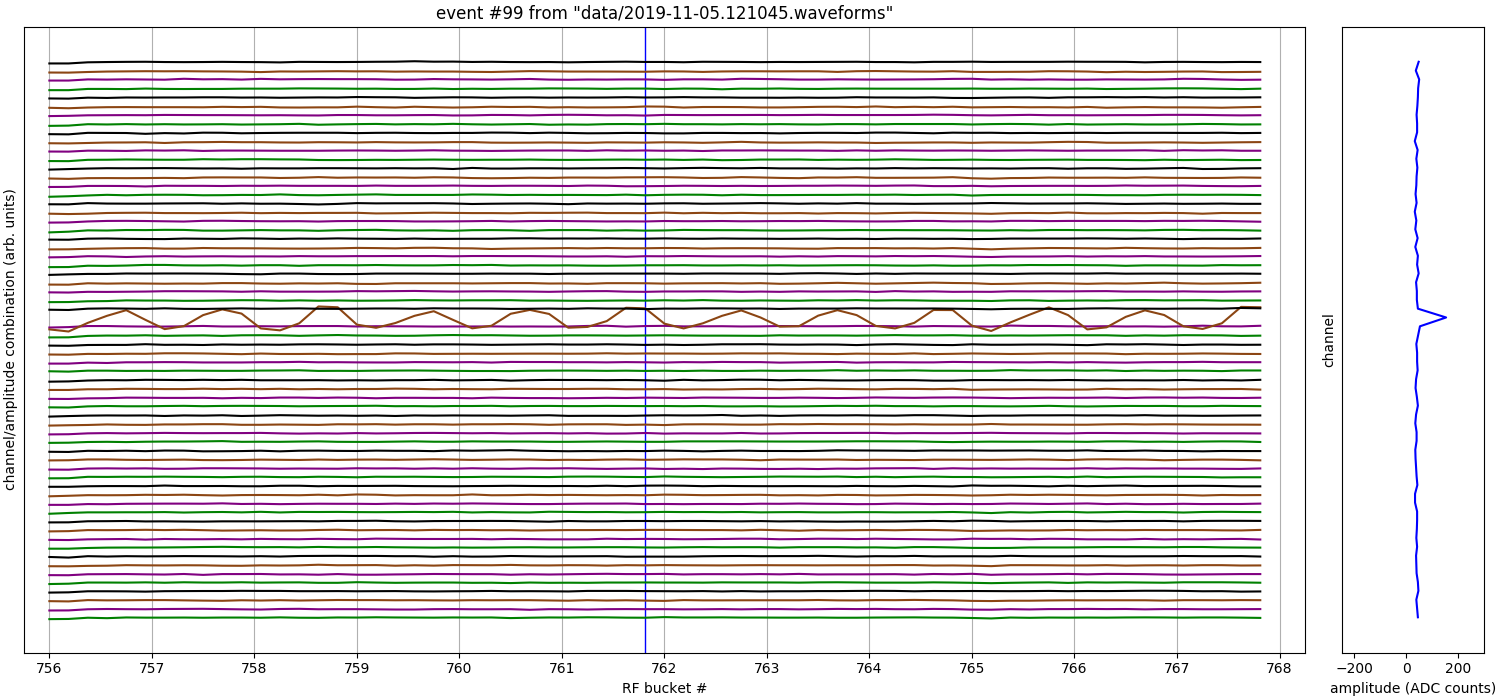

  27   Tue Nov 5 11:47:36 2019 M. Andrewdocumentationinstructions on taking data around a desired RF bucketThis mode of operation is useful when you've
located your RF bucket of interest and want
to focus on taking data at that position. 		 2019-11-05.121045.waveforms.0099.png
  28   Mon Nov 18 13:30:44 2019 M. Andrewdocumentationfirst light!A video of a time series of waveforms for
first light (recorded 2019-11-15) is posted
here:
  29   Mon Nov 18 14:06:31 2019 M. Andrewdocumentationconfig fileBelow is a list of all possible config file
options that are interpreted/used by the
xrm.py code.  The filename is ".config" and

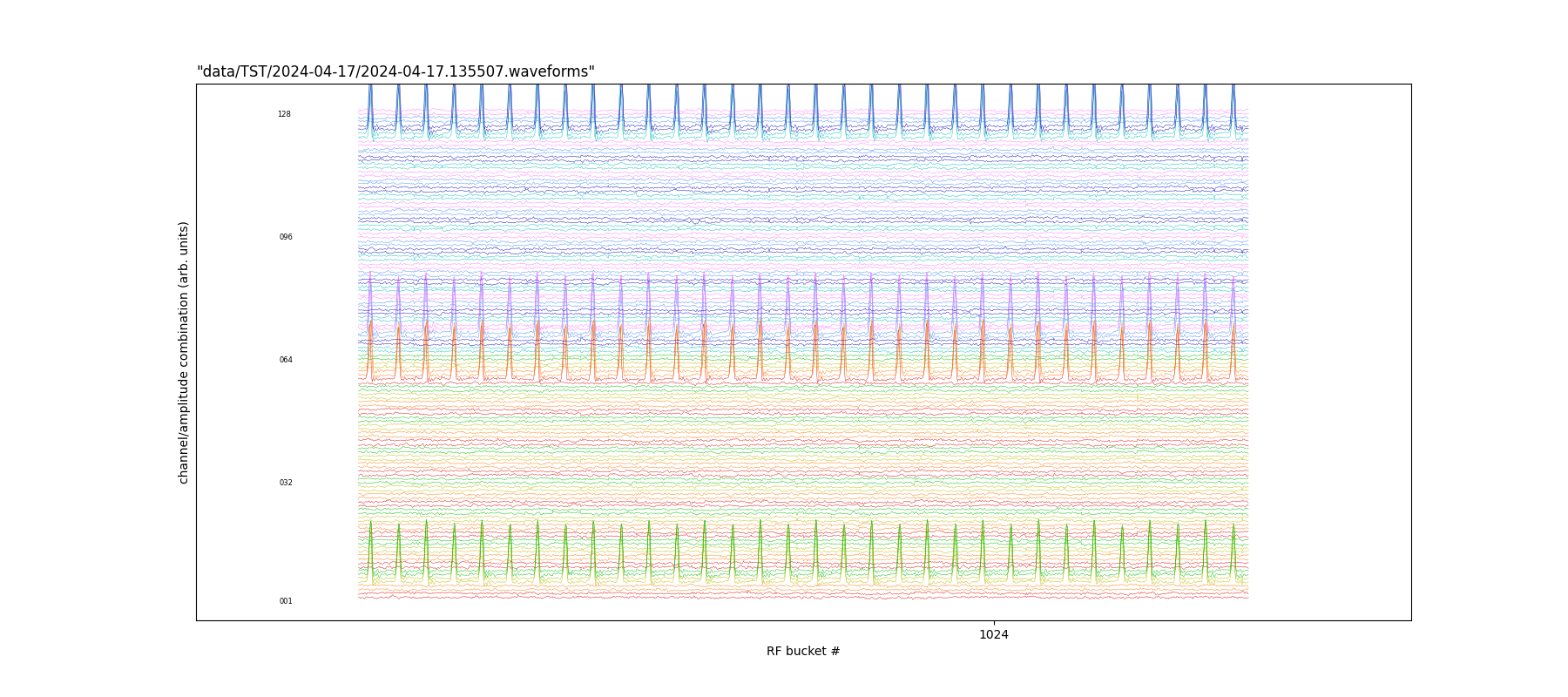

  30   Wed Nov 6 13:35:45 2024 M. Andrewdocumentationsample waveform filesAttached is a sample datafile (in raw, root
and waveforms formats) showing self-pulser
data taken in April 2024, along with the		  2024-04-17.135507.zip2024-04-17.135507.waveforms.32windows.pngxrm.py
  31   Mon Feb 3 08:22:06 2025 M. Andrewdocumentationconfig fileAttached is the updated .config file for 2025.  .config
